Introduced: 1991
This F40PH model was the third in a series of nice looking, decent running and (most importantly) affordably priced Life-Like locomotive models (all manufactured in China). Throughout the 1990s, the same basic chassis design employed in this model would eventually be recycled (more or less) in numerous other "wallet friendly" Life-Like models - GP38-2, F7, BL2, FA-2/FB-2, and GP18. It was a good niche for Life-Like at the time - filling the void between Bachmann's line of cheapie trainset junk and the nice-but-expensive offerings from Atlas and Kato.

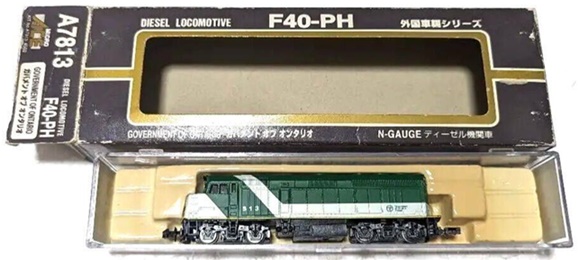

Like the rest of Life-Like's early line of N scale locomotives, these models were also sold in Moki/Micro Ace packaging (and presumably not for the North American market) -
The chassis is all plastic and quite light. Ala-carte weights plunked atop each of the truck towers provide most of the model's weight. The motor is an open-sided, skew-wound, 5-poler. All eight wheels are geared and provide pickup (no traction tires). Current is transferred from the trucks to the motor via miles of wiring (two wires per truck). All gearing is plastic. The driveshafts are plastic with springs in the middle. Couplers are truck-mounted Rapidos (open pilots). A non-directional headlight sits underneath the forward chassis weight. The wheels are blackened. They're also low-profile, so no problems on Code-55 track.
Now, I'm not going to blow smoke up your skirt and try to tell you that these models are even in the same ballpark as an Atlas or a Kato (either in looks or performance). But for what they are (affordable), they're quite respectable. They're not noisy, throttle response is smooth, pulling power is good, pickup is great (no stalls), and slow-speed creep is nice (although the top-end speed is off the charts). Shell detailing and paint aren't terribly fine, but for what they cost (about a third the cost of an Atlas or Kato model of that era), they were a good value (especially as compared to the godawful offerings from Bachmann and the like).
Ironically, these models employ virtually the same chassis/mechanism design used by Model Power/Mehano in some of their late 1980s diesel models (C-420, et al). Not surprisingly, performance is quite similar.
This model was available up until around 2000, at which point Life-Like starting dropping all of their economically priced diesel models in favor of higher-end offerings.
Shell Removal -
To remove the shell, simply spread the sides apart and lift (don't forget to finagle the front coupler through the pilot).
Grade: B
Reviewed: 4/91 Model Railroader ("The model compares well to drawings and photos... except that it lacks about 6" in height. The body is crisply molded with lots of detail, and the paint and lettering are superb... Especially impressive are the cast-in windshield wipers and the exquisite five-chime horn. One weak area is the fuel tank, which looks like a flat box and nothing like the real thing. Life-Like ships its models lightly lubricated, so you can go straight from box to track and start running them. There's no chance for the lubricants to dry out or cake, as the inventory is churning so well that the model is only a few months old when you buy it... Inside you'll find a five-pole, open-frame motor with a skewed armature. The motor is double-ended with drive shafts that are in fact springs. In theory, these should make for smoother running than solid shafts would... The trucks are held in by easily removed pins. All wheels driven- none have traction tires - and all pick up electricity and transmit it to the motor via wires. Massive cast weights make for good tractive effort. The wheels appear to be nickle-silver that has been chemically browned to better resemble the prototype. At .030" the flanges are considerably beyond the .022" NMRA standard. Our F40PH was a relatively smooth-running unit that performed nicely throughout its speed range. Its starting speed was a bit on the high side, but I'd expect it to drop after the unit is run in... It will definitely handle the 8 cars per unit of the typical Amtrak assignment. This is a good-looking and nice-running model and a welcome addition to the N scale fleet. Amtrak, CalTrain, New Jersey Transit, Undec. Price: $29.98")
